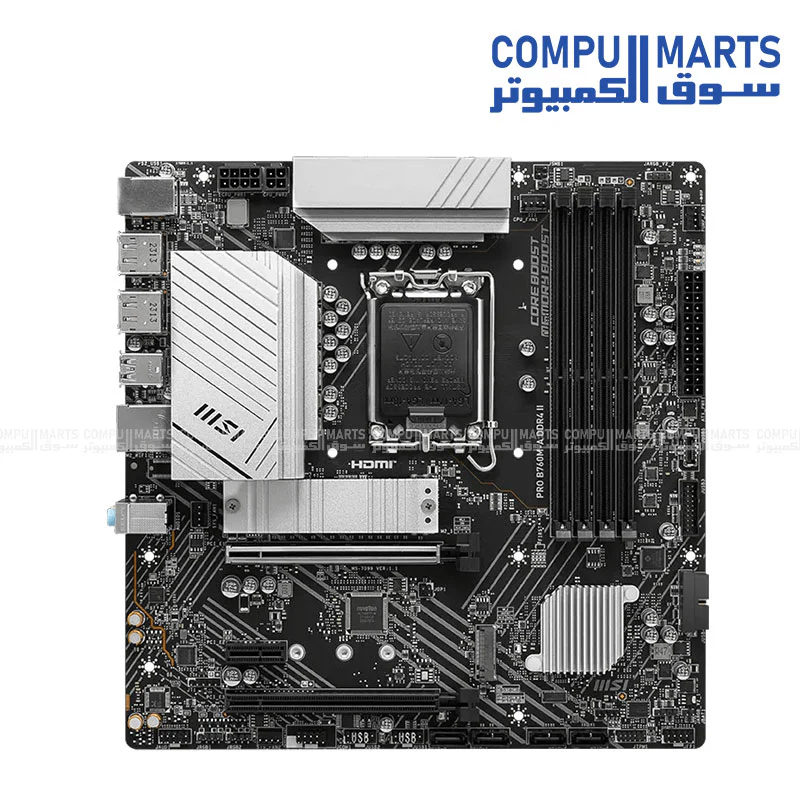

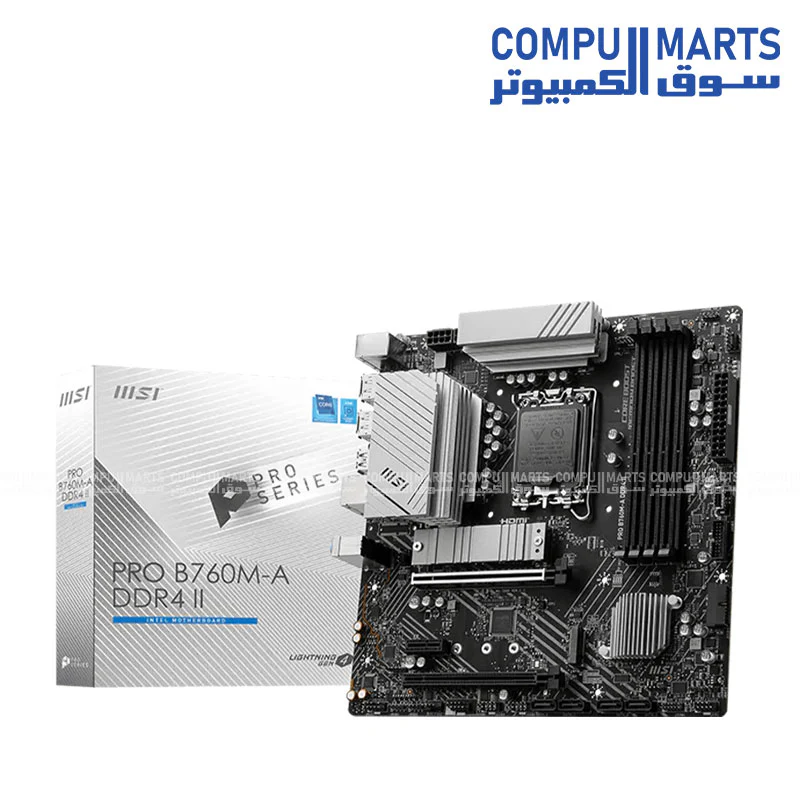

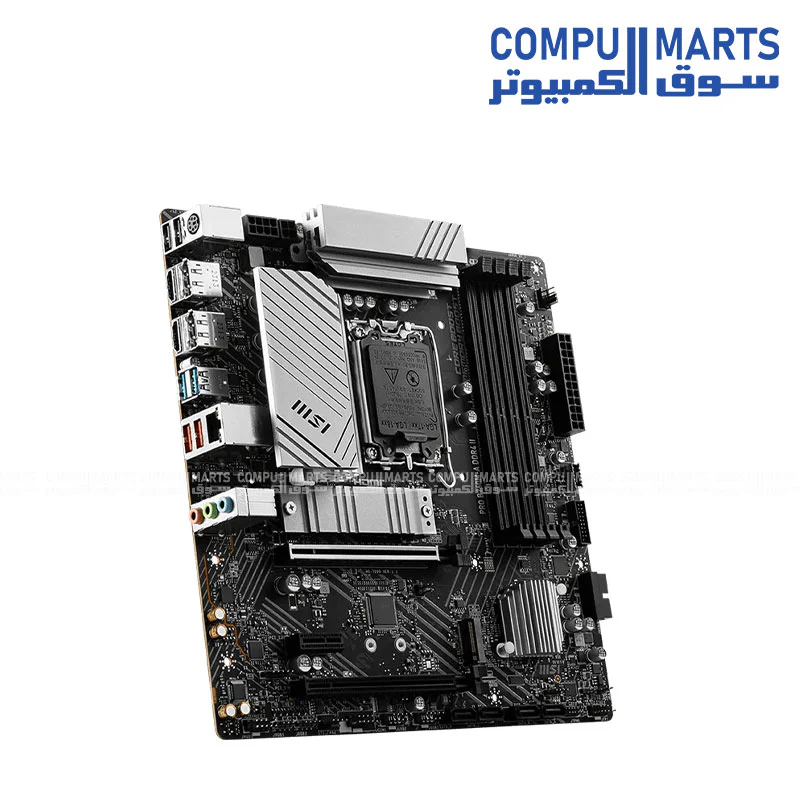

MSI PRO B760M-A DDR4 II M-ATX LGA1700 Gaming Motherboard
| Category | Specification Details |
|---|---|
| Chipset | INTEL B760 |
| CPU | Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors LGA 1700 |
| Memory | 4x DDR4, Maximum Memory Capacity 128GB |
| Memory Support | 5333(OC)/ 5200(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) |
| Max. overclocking frequency | 1DPC 1R Max speed up to 5333+ MHz; 1DPC 2R Max speed up to 4800+ MHz; 2DPC 1R Max speed up to 4400+ MHz; 2DPC 2R Max speed up to 4000+ MHz |
| Memory Features | Supports Dual-Channel mode, Supports non-ECC, un-buffered memory, Supports Intel® Extreme Memory Profile (XMP) |
| Onboard Graphics | 2x HDMI™ 2.1 (4K 60Hz), 2x DisplayPort 1.4 (4K 60Hz) *Available only on processors featuring integrated graphics. |
| Slot | 2x PCI-E x16 slot, 1x PCI-E x1 slot |
| Expansion Details | PCI_E1 Gen PCIe 4.0 up to x16 (From CPU); PCI_E2 Gen PCIe 3.0 up to x1 (From Chipset); PCI_E3 Gen PCIe 4.0 up to x4 (From Chipset) |
| Audio | Realtek ALC897 Codec, 7.1-Channel High Definition Audio |
| Storage | 2x M.2 (M.2_1 PCIe 4.0 x4 from CPU; M.2_2 PCIe 4.0 x4 / SATA from Chipset), 4x SATA 6G *SATA8 unavailable when installing M.2 SATA SSD in M2_2 slot |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| USB (Rear) | 2x USB 2.0, 2x USB 5Gbps Type A, 2x USB 10Gbps Type A |
| USB (Front) | 4x USB 2.0, 4x USB 5Gbps Type A, 1x USB 5Gbps Type C |
| LAN | Realtek RTL8125BG 2.5G LAN |
| Internal IO | 1x ATX_PWR, 2x CPU_PWR, 1x CPU Fan, 1x Pump Fan, 2x System Fan, 2x JFP, 1x JCI, 1x JAUD, 1x JCOM, 2x JARGB_V2, 2x JRGB, 1x TPM header, 4x USB 2.0 ports, 4x USB 5Gbps Type A ports, 1x USB 5Gbps Type C ports |
| LED FEATURE | 4x EZ Debug LED |

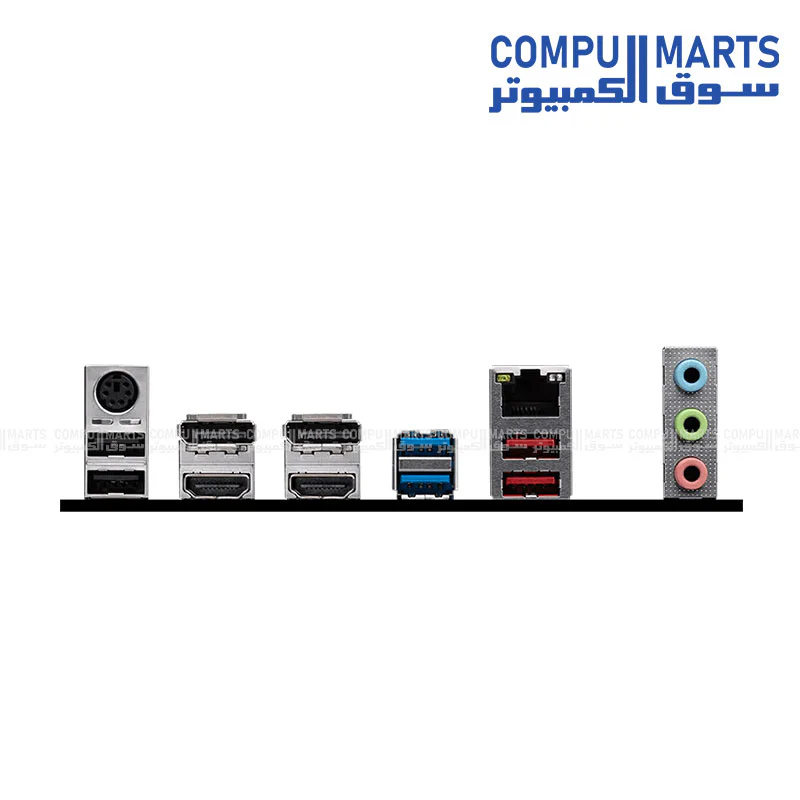

| BACK PANEL PORTS | Keyboard / Mouse, DisplayPort, USB 3.2 Gen 1 5Gbps (Type-A), 2.5G LAN, Audio Connectors, USB 2.0, HDMI™, USB 3.2 Gen 2 10Gbps (Type-A) |
| OPERATING SYSTEM | Support for Windows® 11 64-bit, Windows® 10 64-bit |
$47.43
Original: $135.51
-65%MSI PRO B760M-A DDR4 II M-ATX LGA1700 Gaming Motherboard—
$135.51
$47.43Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
| Category | Specification Details |
|---|---|
| Chipset | INTEL B760 |
| CPU | Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors LGA 1700 |
| Memory | 4x DDR4, Maximum Memory Capacity 128GB |
| Memory Support | 5333(OC)/ 5200(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) |
| Max. overclocking frequency | 1DPC 1R Max speed up to 5333+ MHz; 1DPC 2R Max speed up to 4800+ MHz; 2DPC 1R Max speed up to 4400+ MHz; 2DPC 2R Max speed up to 4000+ MHz |
| Memory Features | Supports Dual-Channel mode, Supports non-ECC, un-buffered memory, Supports Intel® Extreme Memory Profile (XMP) |
| Onboard Graphics | 2x HDMI™ 2.1 (4K 60Hz), 2x DisplayPort 1.4 (4K 60Hz) *Available only on processors featuring integrated graphics. |
| Slot | 2x PCI-E x16 slot, 1x PCI-E x1 slot |
| Expansion Details | PCI_E1 Gen PCIe 4.0 up to x16 (From CPU); PCI_E2 Gen PCIe 3.0 up to x1 (From Chipset); PCI_E3 Gen PCIe 4.0 up to x4 (From Chipset) |
| Audio | Realtek ALC897 Codec, 7.1-Channel High Definition Audio |
| Storage | 2x M.2 (M.2_1 PCIe 4.0 x4 from CPU; M.2_2 PCIe 4.0 x4 / SATA from Chipset), 4x SATA 6G *SATA8 unavailable when installing M.2 SATA SSD in M2_2 slot |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| USB (Rear) | 2x USB 2.0, 2x USB 5Gbps Type A, 2x USB 10Gbps Type A |
| USB (Front) | 4x USB 2.0, 4x USB 5Gbps Type A, 1x USB 5Gbps Type C |
| LAN | Realtek RTL8125BG 2.5G LAN |
| Internal IO | 1x ATX_PWR, 2x CPU_PWR, 1x CPU Fan, 1x Pump Fan, 2x System Fan, 2x JFP, 1x JCI, 1x JAUD, 1x JCOM, 2x JARGB_V2, 2x JRGB, 1x TPM header, 4x USB 2.0 ports, 4x USB 5Gbps Type A ports, 1x USB 5Gbps Type C ports |
| LED FEATURE | 4x EZ Debug LED |
| BACK PANEL PORTS | Keyboard / Mouse, DisplayPort, USB 3.2 Gen 1 5Gbps (Type-A), 2.5G LAN, Audio Connectors, USB 2.0, HDMI™, USB 3.2 Gen 2 10Gbps (Type-A) |
| OPERATING SYSTEM | Support for Windows® 11 64-bit, Windows® 10 64-bit |
