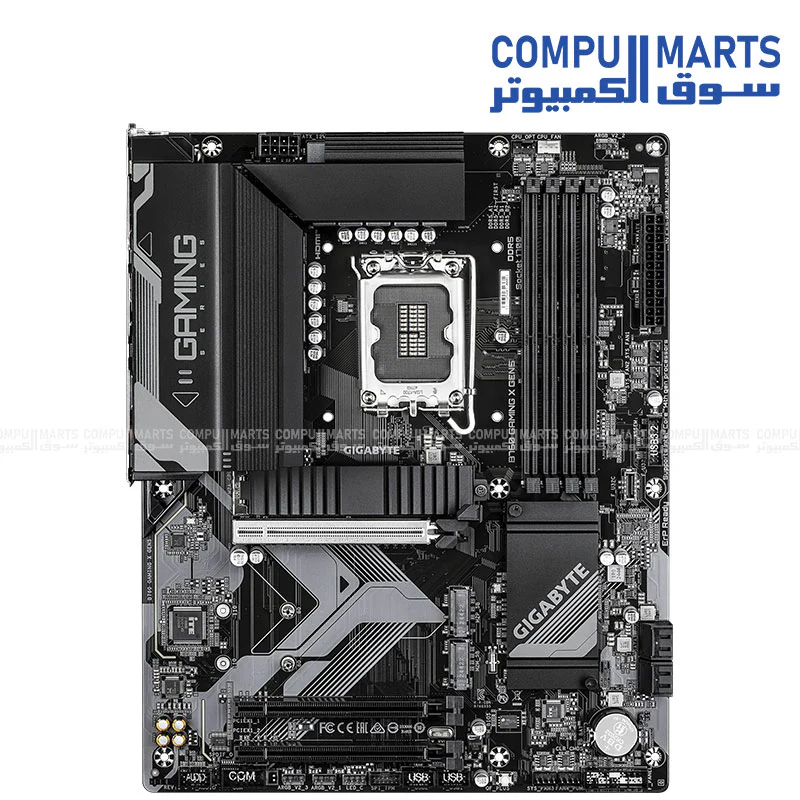

GIGABYTE B760 GAMING X GEN5 DDR4 Motherboard – LGA 1700, PCIe 5.0, Wi‑Fi 6E, ATX
| Category | Specification Details |
|---|---|
| Product Name | GIGABYTE B760 GAMING X GEN5 |
| CPU Socket | LGA1700 support for Intel® 14th, 13th, and 12th Gen Processors |
| Chipset | Intel® B760 Express |
| Memory Support | 4x DDR5 DIMM, Max. 256GB, Up to 5600 MT/s (Native); XMP Support |
| Memory Features | Dual channel, ECC Un-buffered (non-ECC mode), Non-ECC Un-buffered |
| PCIe Slots | 1x PCIe 5.0 x16 (Main), 2x PCIe 3.0 x16 (running at x1) |
| M.2 Storage | 3x M.2 slots (1x PCIe 4.0 x4 CPU, 2x PCIe 4.0 x4 Chipset) |
| SATA Storage | 4x SATA 6Gb/s connectors; RAID 0, 1, 5, 10 support |
| Networking | Realtek® 2.5GbE LAN; Wi-Fi 6E (2T2R) |
| Rear USB Ports | 1x USB 3.2 Gen 2 Type-A (Red), 1x USB Type-C (3.2 Gen 1), 1x USB 3.2 Gen 1, 5x USB 2.0 |
| Internal USB | 1x USB Type-C (3.2 Gen 2), 1x USB 3.2 Gen 1 (2 ports), 2x USB 2.0 (4 ports) |
| Onboard Graphics | 1x HDMI 2.1 (4K@60 Hz), 1x DisplayPort 1.2 (4K@60 Hz) |
| Audio | Realtek® CODEC; 7.1-channel; 6x Audio jacks; Optical S/PDIF Out header |
| Special Features | Q-Flash Plus, Reset Jumper, 3x ARGB Gen2 headers, 1x RGB header |
| Form Factor | ATX (30.5cm x 24.4cm) |
| OS Support | Support for Windows 11 64-bit, Support for Windows 10 64-bit |
$146.55
GIGABYTE B760 GAMING X GEN5 DDR4 Motherboard – LGA 1700, PCIe 5.0, Wi‑Fi 6E, ATX—
$146.55
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
| Category | Specification Details |
|---|---|
| Product Name | GIGABYTE B760 GAMING X GEN5 |
| CPU Socket | LGA1700 support for Intel® 14th, 13th, and 12th Gen Processors |
| Chipset | Intel® B760 Express |
| Memory Support | 4x DDR5 DIMM, Max. 256GB, Up to 5600 MT/s (Native); XMP Support |
| Memory Features | Dual channel, ECC Un-buffered (non-ECC mode), Non-ECC Un-buffered |
| PCIe Slots | 1x PCIe 5.0 x16 (Main), 2x PCIe 3.0 x16 (running at x1) |
| M.2 Storage | 3x M.2 slots (1x PCIe 4.0 x4 CPU, 2x PCIe 4.0 x4 Chipset) |
| SATA Storage | 4x SATA 6Gb/s connectors; RAID 0, 1, 5, 10 support |
| Networking | Realtek® 2.5GbE LAN; Wi-Fi 6E (2T2R) |
| Rear USB Ports | 1x USB 3.2 Gen 2 Type-A (Red), 1x USB Type-C (3.2 Gen 1), 1x USB 3.2 Gen 1, 5x USB 2.0 |
| Internal USB | 1x USB Type-C (3.2 Gen 2), 1x USB 3.2 Gen 1 (2 ports), 2x USB 2.0 (4 ports) |
| Onboard Graphics | 1x HDMI 2.1 (4K@60 Hz), 1x DisplayPort 1.2 (4K@60 Hz) |
| Audio | Realtek® CODEC; 7.1-channel; 6x Audio jacks; Optical S/PDIF Out header |
| Special Features | Q-Flash Plus, Reset Jumper, 3x ARGB Gen2 headers, 1x RGB header |
| Form Factor | ATX (30.5cm x 24.4cm) |
| OS Support | Support for Windows 11 64-bit, Support for Windows 10 64-bit |
